Microsoft SQL Server Database Files Space Report
by BF (Principal Consultant; Architecture; Engineering)
2023-07-23

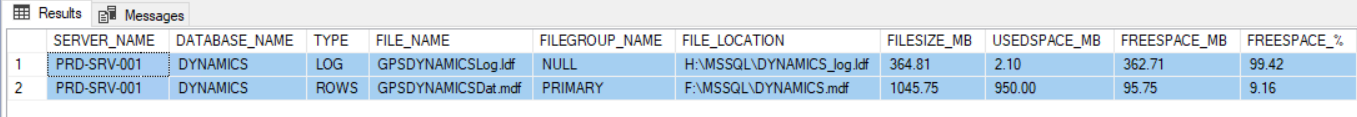

Microsoft SQL Server Database Files Space Report:


SELECT
[SERVER_NAME] = @@ServerName
,[DATABASE_NAME] = DB_NAME()
,[TYPE] = A.TYPE_DESC
,[FILE_NAME] = A.name
,[FILEGROUP_NAME] = fg.name
,[FILE_LOCATION] = A.PHYSICAL_NAME
,[FILESIZE_MB] = CONVERT(DECIMAL(10,2),A.SIZE/128.0)
,[USEDSPACE_MB] = CONVERT(DECIMAL(10,2),A.SIZE/128.0 - ((SIZE/128.0) - CAST(FILEPROPERTY(A.NAME, 'SPACEUSED') AS INT)/128.0))
,[FREESPACE_MB] = CONVERT(DECIMAL(10,2),A.SIZE/128.0 - CAST(FILEPROPERTY(A.NAME, 'SPACEUSED') AS INT)/128.0)
,[FREESPACE_%] = CONVERT(DECIMAL(10,2),((A.SIZE/128.0 - CAST(FILEPROPERTY(A.NAME, 'SPACEUSED') AS INT)/128.0)/(A.SIZE/128.0))*100)
,[AUTOGROW] = 'By ' + CASE is_percent_growth WHEN 0 THEN CAST(growth/128 AS VARCHAR(10)) + ' MB -'
WHEN 1 THEN CAST(growth AS VARCHAR(10)) + '% -' ELSE '' END
+ CASE max_size WHEN 0 THEN 'DISABLED' WHEN -1 THEN ' Unrestricted'
ELSE ' Restricted to ' + CAST(max_size/(128*1024) AS VARCHAR(10)) + ' GB' END
+ CASE is_percent_growth WHEN 1 THEN ' [autogrowth by percent, BAD setting!]' ELSE '' END
, [DATE_TIME_STAMP] = GETDATE()
FROM
sys.database_files A LEFT JOIN sys.filegroups fg ON A.data_space_id = fg.data_space_id
ORDER BY
A.TYPE desc, A.NAME;
